Mpo Panel Mpo-Lc MPO MTP Patch Cord 0.9mm 24 Port Om3 Quadruple Adapter

Brand Name : Sourcelight or OEM

Model Number : MPO 12F UPC Aqua

Certification : IS09001-2008.ROHS

Place of Origin : Shenzhen,China

MOQ : 1pcs

Price : Get Latest Price

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Delivery Time : 5000 Pcs Per Month

Packaging Details : PE bag, carton box, wooden pallet

Type : MPO-LC

Other Type : LC OM3 Quad Aqua Adapter

Material : Cold Rolled Steel Sheet

Color : Cold Rolled Steel Sheet

Cable Diameter : 0.9mm Or 2.0mm

Capacity : 12 / 24 Cores

Contact Now

Mpo Panel Mpo-Lc MPO MTP Patch Cord 0.9mm 24 Port Om3 Quadruple Adapter

MPO/MTP-LC 24 port OM3 CASSETTES is made of cold rolled steel sheet or Aluminum, MPO Cassette Modules provide secure transition between MPO and LC or SC discrete connectors. They are used to interconnect MPO backbones with LC or SC patching.

Features

  • Design for MPO/MTP SYSTEM, for quickly network deploy and quick-fix solution

  • High-density and small design

  • 12 and 24 fiber versions – 12 LC (Duplex) / SC (Simplex) optical parts

  • Available Multimode (62.5/125, Standard 50/125 and OM3,OM4) and Single mode(OS1/2) fiber.

  • Factory-terminated and -tested cable and apparatus for instant field connections with guaranteed quality and performance

  • Metallic shell with high strength protect the inner fibers effectively

  • Supports easy reconfiguration for moves, adds, and changes

  • Available for the installation of LC/SC adapter


Advantages
  • Imported production and test equipments:EXFO IL&RL Tester/ Domaille Grinding Machine/ SENKO 3D Interferometer
  • Pretty high return loss:≥45dB
  • 5-year Experience R&D Team
  • Customized Production and Service
  • 40G/100G Data Center Solution

Application
  • Data center infrastructure
  • Storage area network
  • Emerging 40 & 100Gps Protocols
  • Parallel optics
  • Enterprise network cabling systerm

Technical Parameter
Item Technical Parameter
Connector MPO (Female) LC
Operation Temperature -40°C ~ +80°C
Storage Temperature -40°C ~ +85°C
Insertion Loss

SM: ≤ 0.75dB (standard value),
≤0.35dB (typical value);
MM:≤ 0.50dB (standard value),
≤0.35dB (typical value);

SM:≤ 0.2dB;
MM:≤ 0.2dB;

Return Loss

SM:≥60dB;

MM:≥35dB;

SM:≥60dB;

MM:≥35dB;
The MPO end type Male: with guide pin; Female: without guide pin
Fiber count 8,12&24 MT fiber
The other end of the connector type MPO-female , MPO-male , FC , SC , ST , MU , LC , E2000
Fiber mode Single-mode(G652,G655,G657), multi-mode (50, 62.5, OM2, OM3, OM4)
Fiber cable type 250um ribbon fiber,ribbon cable,Bundle fiber optic cable


Mpo Panel Mpo-Lc MPO MTP Patch Cord 0.9mm 24 Port Om3 Quadruple Adapter


Product Tags:

fiber optic patch cables



fiber patch panel


Buy cheap Mpo Panel Mpo-Lc MPO MTP Patch Cord 0.9mm 24 Port Om3 Quadruple Adapter product

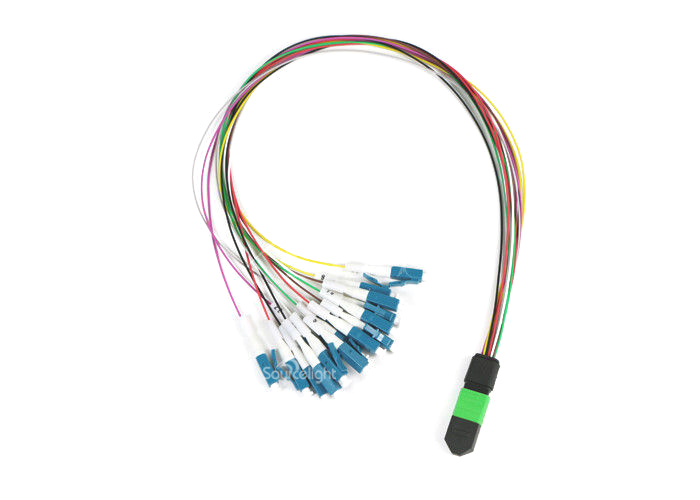

Mpo Panel Mpo-Lc MPO MTP Patch Cord 0.9mm 24 Port Om3 Quadruple Adapter Images
