SFP Modules QSFP-4X10G-AOC1M QSFP To 4 SFP+ Active Optical Breakout Cable

Name: SFP Modules QSFP4X10GAOC1M QSFP To 4 SFP Active Optical Breakout Cable
Brand: Sourcelight or OEM
Price: 1 USD

Brand Name : Sourcelight or OEM

Model Number : QSFP-4X10G-AOC

Certification : CE/FCC/RoHS/TUV/UL

Place of Origin : Shenzhen,China

MOQ : 1PCS

Price : Get Latest Price

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 200PCS Per Week

Delivery Time : Shipped in 1~3 days after PO confirmed

Packaging Details : 1pc Independent packaging.

Product name : QSFP-4X10G-AOC

Datarate : 10.3G/CH

Distance : Up to 100M For OM3 Fiber

Transmitter : 4CH VCSEL Laser

Tx power : -7.5~+2.5dBm

Connector : QSFP+ and sfp+

Contact Now

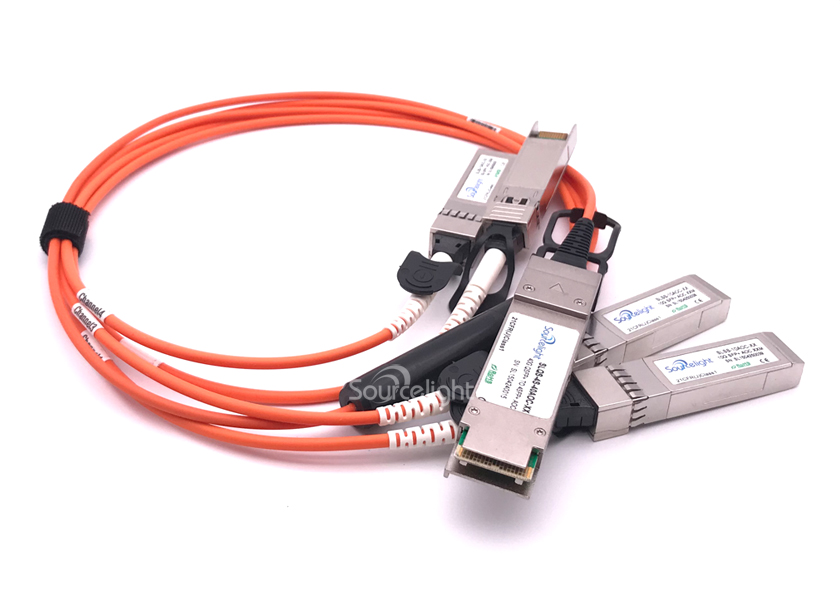

QSFP-4X10G-AOC 40GBase-AOC QSFP to 4 SFP+ Active Optical breakout Cable

Overview

Sourcelight QSFP to 4x SFP+ breakout AOC offers IT professionals a cost-effective interconnect solution for merging 40G QSFP and 10G SFP+ enabled host adapters, switches and servers.

For typical applications, users can install this splitter Active Optical cable between an available QSFP port on their 40Gbps rated switch and feed up to four upstream 10GbE-SFP+ enabled switches. Each QSFP-SFP+ splitter Active Optical cable features a single QSFP connector (SFF-8436) rated for 40Gbps on one end and (4) SFP+ connectors (SFF-8431), each rated for 10-Gb/s, on the other.

Parameter

Package (Form Factor)	QSFP+ to 4SFP+ AOC
Data Rate (typical)	10.3 Gbps per CH
Distance	100m on OM3 MMF
Transmitter	4CH VCSEL
Receiver	4CH PIN
TX Output Power	-7.5~+2.5(dBm)
RX Sensitivity	-5.4(dBm)
Low/High Case Temperature	0°C~70°C
Voltage Supply	3.3v(typical)
Connector	QSFP+ And SFP+

Features

QSFP+ connectors (SFF-8436)
SFP+ connectors (SFF-8431)
850nm VCSEL transmitter PIN photo detector receiver
Up to 100m on OM3 MMF
Operating case temperature: 0 to 70℃
All-metal housing for superior EMI performance

Application

40 Gigabit Ethernet
Fibre Channel Applications
InfiniBand QDR, SDR, DDR
High-performance computing clusters
Servers, switches, storage and host card adapters

SFP Modules QSFP-4X10G-AOC1M QSFP To 4 SFP+ Active Optical Breakout Cable

Competitive advantage
1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (HP/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Keep stock,Fast delivery
