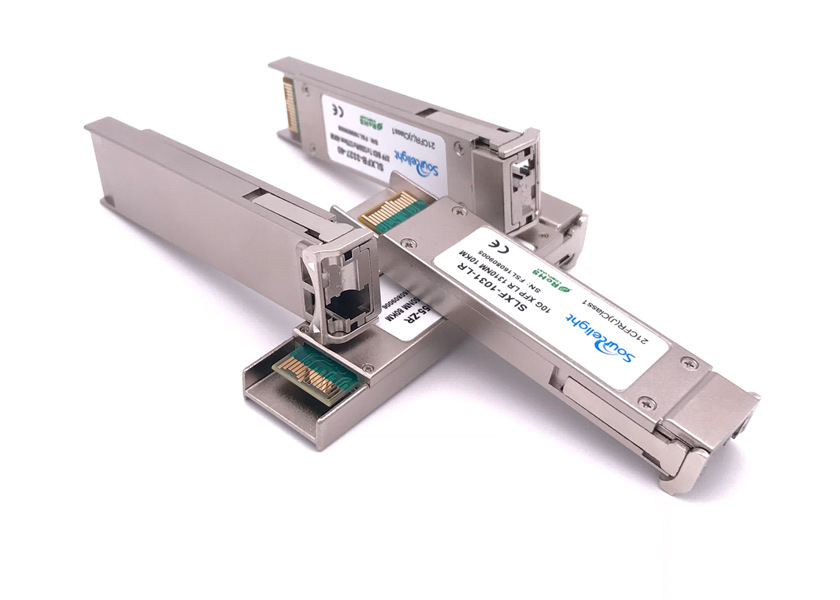

Tx 1270nm 60km 10g Xfp Optical Transceiver Module For Singlemode Fiber Channel 10ge

Name: Tx 1270nm 60km 10g Xfp Optical Transceiver Module For Singlemode Fiber Channel 10ge
Brand: Sourcelight or OEM
Price: 1 USD

Buy cheap Tx 1270nm 60km 10g Xfp Optical Transceiver Module For Singlemode Fiber Channel 10ge product

Brand Name : Sourcelight or OEM

Model Number : XFP 60KM BIDI

Certification : CE/FCC/RoHS/TUV/UL

Place of Origin : Shenzhen,China

MOQ : 1PCS

Price : Get Latest Price

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 500PCS Per Week

Delivery Time : Shipped in 1~3 days after PO confirmed

Packaging Details : 10PCS or 20PCS Plastic trays; 1pc gift Box.

Product name : 10G XFP BIDI 60KM

Wavelength : TX1270nm/RX1330nm

Distance : 60KM ON SMF

Transmitter : DFB

Receiver : APD

DDM DOM : YES

Contact Now

Tx 1270nm 60km 10g Xfp Optical Transceiver Module For Singlemode Fiber Channel 10ge

Overview

XFP BIDI 60KM comprises a transmitter with a 1270/1330nm DFB laser transmitter and the receiver section consists of a APD photodiode integrated with a TIA,. Transmitter and receiver are separate within a wide temperature range of 0℃ to +70℃ and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10 GbE systems.

Features

Supports 9.95Gb/s to 10.5Gb/s bit rates
Hot-pluggable XFP footprint
Maximum link length of 60km with SMF
1270/1330nm DFB laser Transmitter and 1330/1270nm APD Receiver
XFP MSA package with LC connector
No reference clock required
Loop Back Support.
+3.3V,+1.8V power supply
Power dissipation <2W

Parameter

Package (Form Factor)	BIDI XFP 60KM
Data Rate (typical)	10.3 Gb/s
Centre Wavelength	Tx1270nm/Rx1330nm
Distance	60km
Diagnostics	Digital Monitor
Transmitter	DFB Laser
Receiver	APD photo detector
TX Output Power	+2~+7(dBm)
RX Sensitivity	-20(dBm)
Low/High Case Temperature	0°C~70°C
Voltage Supply	3.3v(typical)
Connector	Simplex LC/UPC

Application

10GBASE-LR at 10.3125Gbps
10GBASE-LW at 9.953Gbps
10GBASE-BX 10G Ethernet

Tx 1270nm 60km 10g Xfp Optical Transceiver Module For Singlemode Fiber Channel 10ge

Sourcelight BIDI XFP

P/N	Data Rate	Distance	Wavelength	Media	Connector
XFP BIDI 20KM	10G/ps	20KM	1330nm	SM	LC
XFP BIDI 20KM	10G/ps	20KM	1270nm	SM	LC
XFP BIDI 40KM	10G/ps	40KM	1330nm	SM	LC
XFP BIDI 40KM	10G/ps	40KM	1270nm	SM	LC

Competitive advantage
1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (HP/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Keep stock,Fast delivery
