QSFP28-100G-ER4 Compatible 100GBASE-ER4 QSFP28 1310nm 40km DOM Transceiver Module

Product Categories
Sourcelight Technology Limited
Contact Now

QSFP28-100G-ER4 Compatible 100GBASE-ER4 QSFP28 1310nm 40km DOM Transceiver Module

  • 1
  • 2

Brand Name : Sourcelight or OEM

Model Number : 100G QSFP28 ER4

Certification : CE/FCC/RoHS/TUV/UL

Place of Origin : Shenzhen,China

MOQ : 1PCS

Price : Get Latest Price

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200PCS Per Week

Delivery Time : Shipped in 1~3 days after PO confirmed

Packaging Details : 10PCS Plastic trays; 1PC Independent box.

Max Data Rate : 103.1Gbps

Distance : up to 25km links without FEC

Transmitter : cooled 4x25Gb/s LAN WDM EML TOSA

Receiver : 4x25Gb/s APD ROSA

Interface : LC Duplex

DDM DOM : SUPPORT

Contact Now

QSFP28-100G-ER4 Compatible 100GBASE-ER4 QSFP28 1310nm 40km DOM Transceiver Module



Overview

The transceiver module receives 4 channels of 25Gb/s electrical data, each of 4 EML laser driver IC's converts one of the 4 channels of electrical signals to an optical signal that is transmitted from one of the 4 cooled EML lasers which are packaged in the Transmitter Optical Sub-Assembly (TOSA). These 4-lane optical signals will be optically multiplexed into a single fiber by a 4-to-1 optical WDM MUX. The optical output power of each channel is maintained constant by an automatic power control (APC) circuit. The transmitter output can be turned off by TX_DIS hardware signal and/or 2-wire serial interface.


Features

  • Hot pluggable QSFP28 MSA
  • Compliant to IEEE 802.3ba 100GBASE-ER4
  • Up to 25km reach for G.652 SMF without FEC
  • Transmitter: cooled 4x25Gb/s LAN WDM EML TOSA
  • Receiver: 4x25Gb/s APD
  • 4x28G Electrical Serial Interface (CEI-28G-VSR)
  • Maximum power consumption 4.5W
  • Duplex LC UPC receptacle



Parameter

Package (Form Factor) QSFP28 ER4
Data Rate (typical) 25.78 Gbps/CH
Centre Wavelength 1295.56,1300.05,1304.58,1309.14nm
Distance 25km on SMF
Diagnostics DDM
Transmitter 4CH Cooled EML
Receiver 4CH APD
TX Output Power -3~+5.2(dBm)
RX Sensitivity -13.8(dBm)
Low/High Case Temperature 0°C~70°C
Voltage Supply (typical) 3.3v
Connector Duplex LC UPC


Application

  • 100GBASE-ER4 Ethernet Links
  • Infiniband QDR and DDR interconnects
  • Client-side 100G Telecom connections

 QSFP28-100G-ER4 Compatible 100GBASE-ER4 QSFP28 1310nm 40km DOM Transceiver Module
100G QSFP28 ER4 Product

PN Description
QSFP28-100G-ER4 100G ER4 QSFP28 Transceiver 25km(without FEC)  or 30km(wiht FEC) over SMF







Competitive advantage
1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (HP/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Keep stock,Fast delivery




Product Tags:

fiber optical transceiver



data center transceiver


Buy cheap QSFP28-100G-ER4 Compatible 100GBASE-ER4 QSFP28 1310nm 40km DOM Transceiver Module product

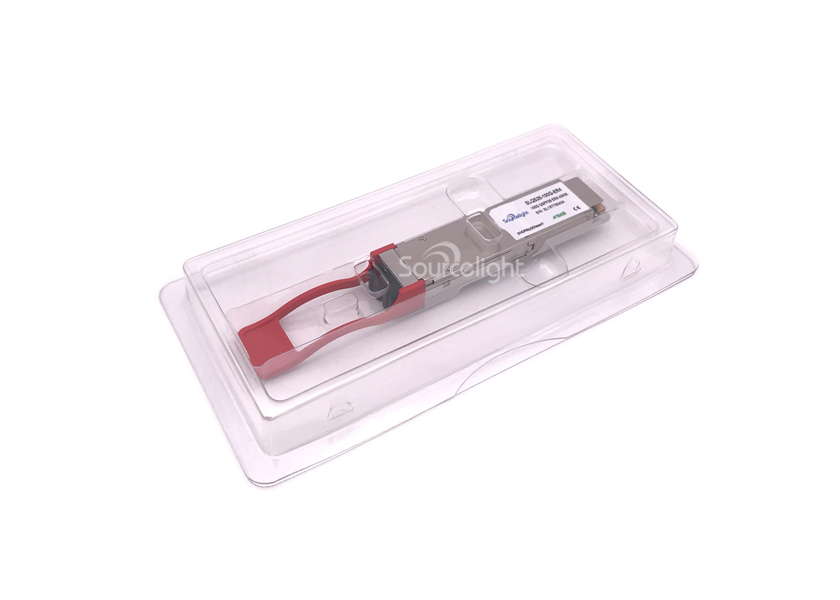

QSFP28-100G-ER4 Compatible 100GBASE-ER4 QSFP28 1310nm 40km DOM Transceiver Module Images
