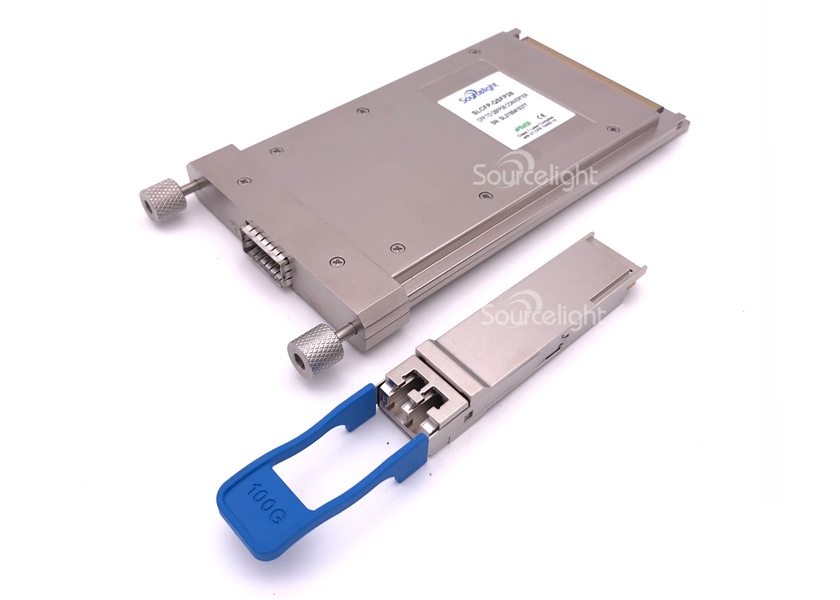

CVR-CFP-100Gb 100G Optical Transceiver CFP to QSFP28 Adapter Converter Module

Overview

Sourcelight 100G CFP to QSFP28 Adapter module converts 10 bidirectional 10G channels to 4 bidirectional 25G channels operating at up to 28Gbps per channel.

The Adapter supports FEC (Forward Error Correction) function; the user can enable the FEC function through the register configuration.

Features

• Compliant to CFP MSA Management Interface Specification Version 2.2

• Converts 10 bidirectional 10G lanes to4 bidirectional 25G lanes

• 1 port 100G QSFP28 TX&RX

• Support 100G IEEE 802.3bj NRZ FEC

• Transmission data rate up to 28Gbps per channel

• OTU4 compatible(FEC is invalid when OTU4 data rate mode is on)

• MDIO digital diagnostic interface and control capabilities

• Power class 2 (Adapter<5W max)

• Hot pluggable electrical interface

• case temperature: 0°C~ +70°C

• Single 3.3V supply

• RoHS 6 compliant

Application

• 100GBE interconnects, IEEE 802.3ba 100GBASE-LR4(Adapter+QSFP28_LR4), IEEE 802.3bm 100GBASE-SR4(Adapter+QSFP28_SR4)

• High-speed core router connections & Datacom/Telecom switch

• Data aggregation and backplane applications

• Proprietary protocol and density application

Ordering Infomation

FAQ(Frequently Asked Questions)
1. Can I have a sample order?What is your MOQ?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable,We do not have MOQ,1 sample is available.

2. What is the lead time?
For usual products,We keep stock,could ship 1~3 days after PO.For big quantity and special products,Please check lead time with our sales.

3. Dose your modules compatible to (HP/Extreme/Juniper,ect)
Yes,we code the optical transceivers compatible to (HP/Extreme/Juniper).

4. What is your warranty time
We promise 3 years warranty for all products shipped from us.

5. Could I use our own logo and label?
Yes,we could provide a OEM service and make the products with your own label.
