Compatible Arista Networks QSFP-40GB-ER4 Compatible 40GBASE-ER4 QSFP+ 1310nm 40km DOM Transceiver Module

Product Categories
Sourcelight Technology Limited
Contact Now

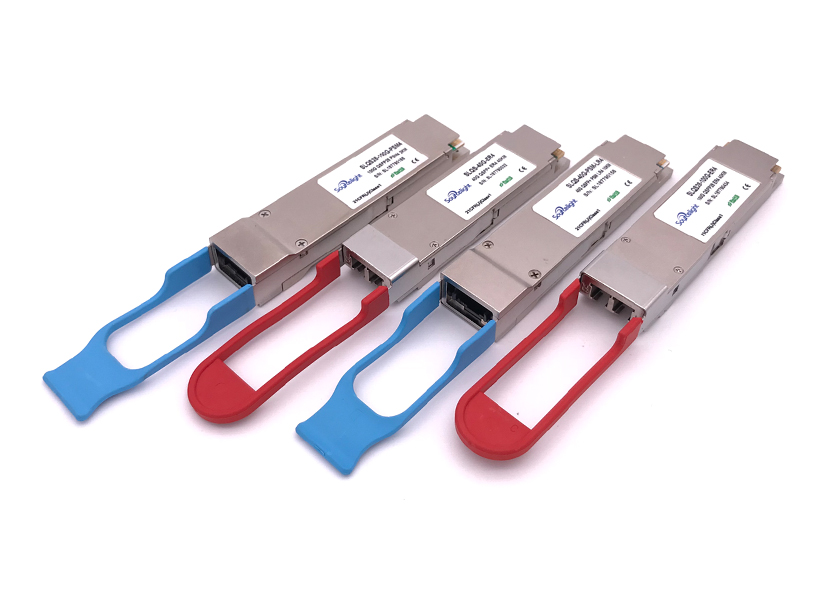

Compatible Arista Networks QSFP-40GB-ER4 Compatible 40GBASE-ER4 QSFP+ 1310nm 40km DOM Transceiver Module

  • 1
  • 2

Brand Name : Sourcelight or OEM

Model Number : QSFP-40G-ER4

Certification : CE/FCC/RoHS/TUV/UL

Place of Origin : Shenzhen,China

MOQ : 1PCS

Price : Get Latest Price

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100PCS Per Week

Delivery Time : Shipped in 1 days after PO confirmed

Packaging Details : 10PCS Plastic trays; 1pc Independent Box.

Data Rate : 40Gbps

Transmitter : 4 CWDM DFB Laser

Receiver : 4CH APD

TX Power : -3.7~+4.5dBm

Sensitivity : -18dBm

Distance : 40KM SMF

Contact Now

QSFP-40GB-ER4 Compatible 40GBASE-ER4 and OTU3 QSFP+ 1310nm 40km LC DOM Transceiver Module



Overview

40G QSFP ER4 is The optical connectivity is based on two SMF LC connectors. The Tx and Rx each consist of 4 10GB/s CWDM channels, whose wavelengths are in the 1300nm range.

The QSFP-ER4 transceiver is designed for applications based on the IEEE 802.3ba 40BASE-ER4 standard of up to 40km reach.



Features

  • 40GBASE-ER4 Standard
  • QSFP+ MSA compliant
  • Compliant with QDR/DDR Infiniband data rates
  • Up to 11.2Gb/s data rate per wavelength
  • 4 CWDM lanes MUX/DEMUX design
  • Up to 40km reach over standard single mode fiber



Parameter

Package (Form Factor) QSFP+ er4
Data Rate (typical) 10.3 Gbps/CH
Centre Wavelength 1270/1290/1310/1330nm
Distance 40km
Diagnostics Digital Monitor
Transmitter 4 CWDM un-cooled DFB Laser
Receiver 4CH APD photo detector
TX Output Power (dBm) -3.7~+4.5
RX Sensitivity (dBm) -18
Low/High Case Temperature 0°C~70°C
Voltage Supply (typical) 3.3v
Connector Duplex LC/UPC



Application

  • 40GBASE-ER4 40G Ethernet links
  • Infiniband QDR and DDR interconnects
  • Client-side 40G Telecom connections

Compatible Arista Networks QSFP-40GB-ER4 Compatible 40GBASE-ER4 QSFP+ 1310nm 40km DOM Transceiver Module




Competitive advantage
1. Excellent quality and 3 years warranty
2. Full compatible (HP/Extreme/Juniper/H3C…)
3. OEM/ODM Customized label
4. Keep stock,Fast delivery
